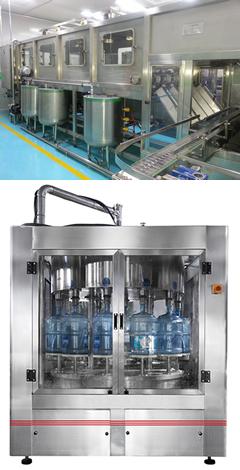

B5G-1500BPH Water Bottle Filling Machine

Water Bottle Filling Machine B5G-1500BPH

Process:
Bottle Rinsing + Filling + Capping
Composition:
1. Bottle Inner Rinsing & Sterilizing Machine
2. Bottle Filling & Capping Machine (Rotary)
SPEC:
Input watt: 13.5kw
Bottle spec.: 270x490x56(diameter) mm
230x460x56(diameter) mm
Bottle volume: 5 or 3 gallons
Cap spec.: 58(diameter)x40mm
Bottle rinsing capacity: 1200 bottles/hour
Filling capacity: 1200 bottles/hour
Dimensions:
Rinsing section: 3,725x2,060x2,300mm
Filling section: 2,000x1,900x2,850mm
N.W.: 1,800kg
